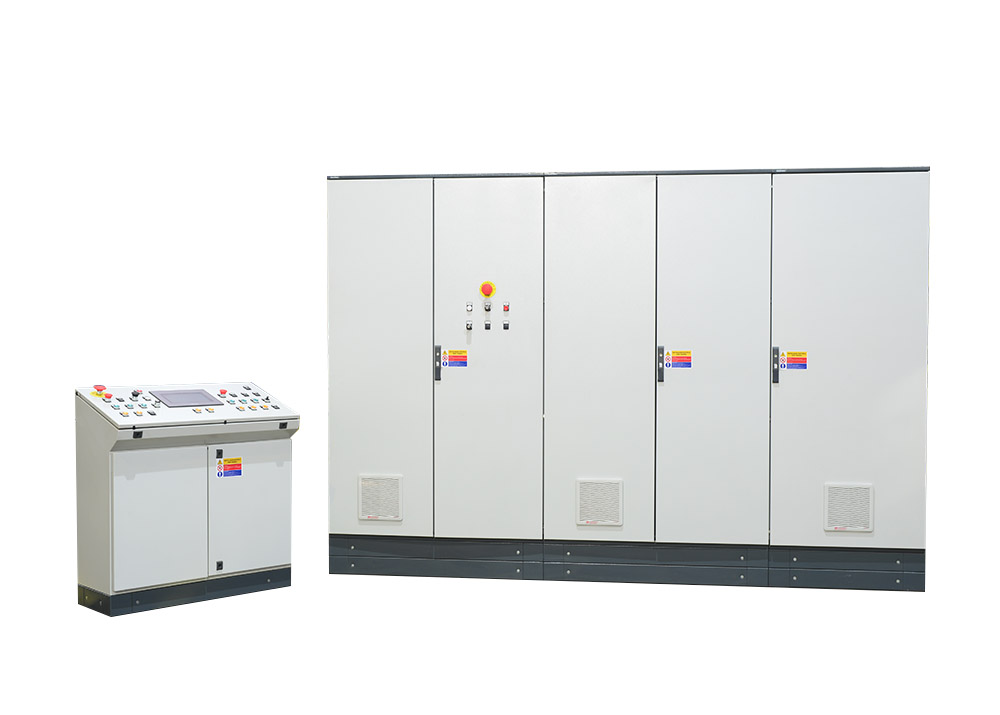

The Electric Panels for command and control are assembled in modular steel sheet cabinets, manufactured for installation indoors and with floor mounting. According to application it may include HMI, signals, etc. They are manufactured in compliance with Technical Standards ABNT, NBR 5410 (Low Voltage Electrical Installations) and NR 10 (Regulatory Standards of Labor Ministry). In case of omission of such standards, the guidelines from international standards, IEC (International Electrotechnical Commission), shall be followed.
Development of electrical project including:
– Internal and external layout with constructive details;
– Single-line and multi-line diagrams;
– Identification plates;
– Color coding as per the safety standards;
– Accident risk areas protected in compliance with the safety standards (NR 10).
